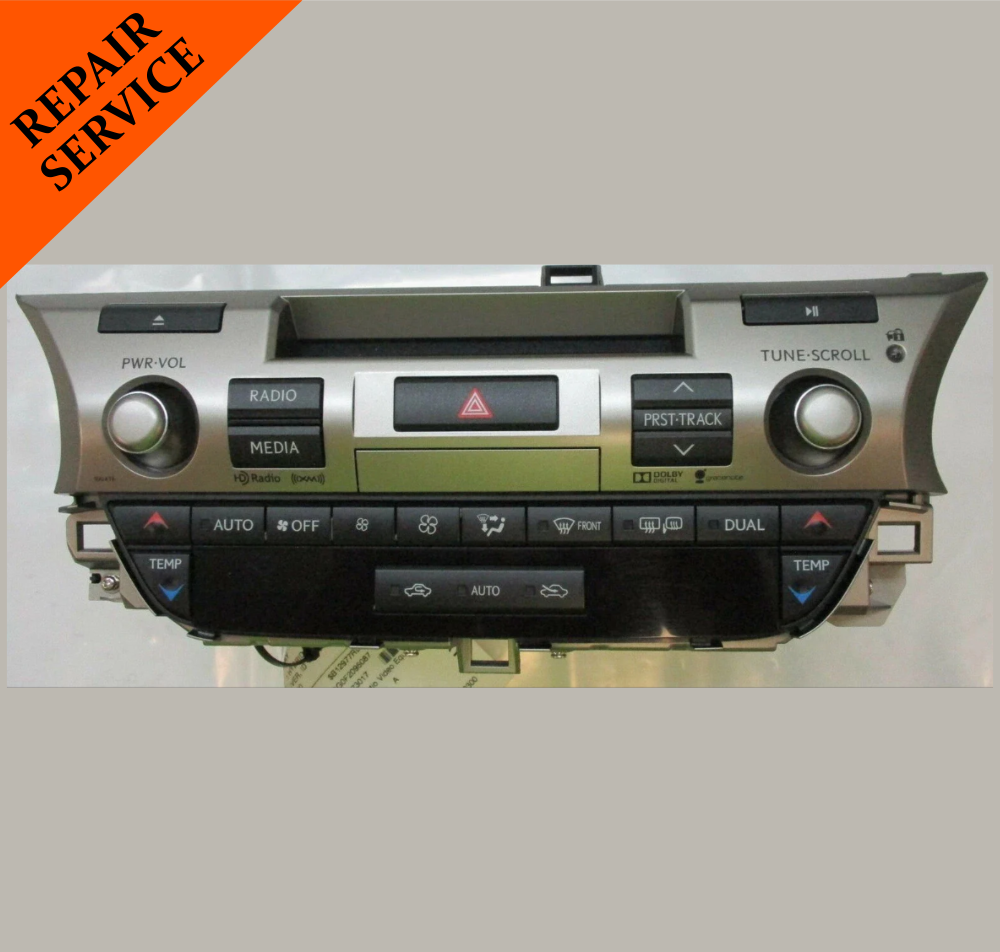

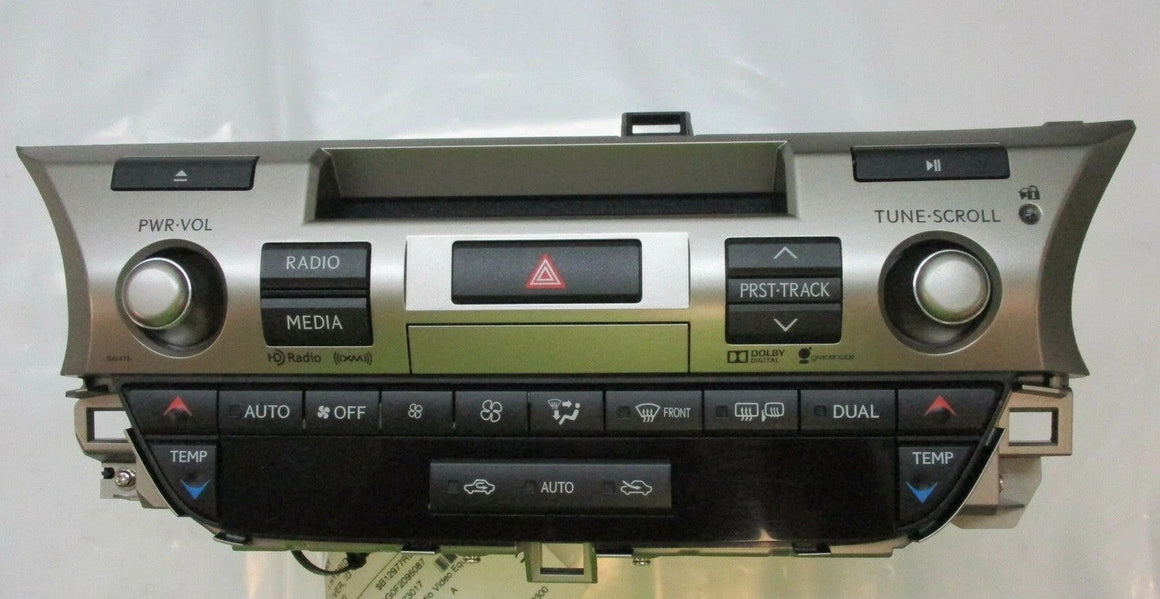

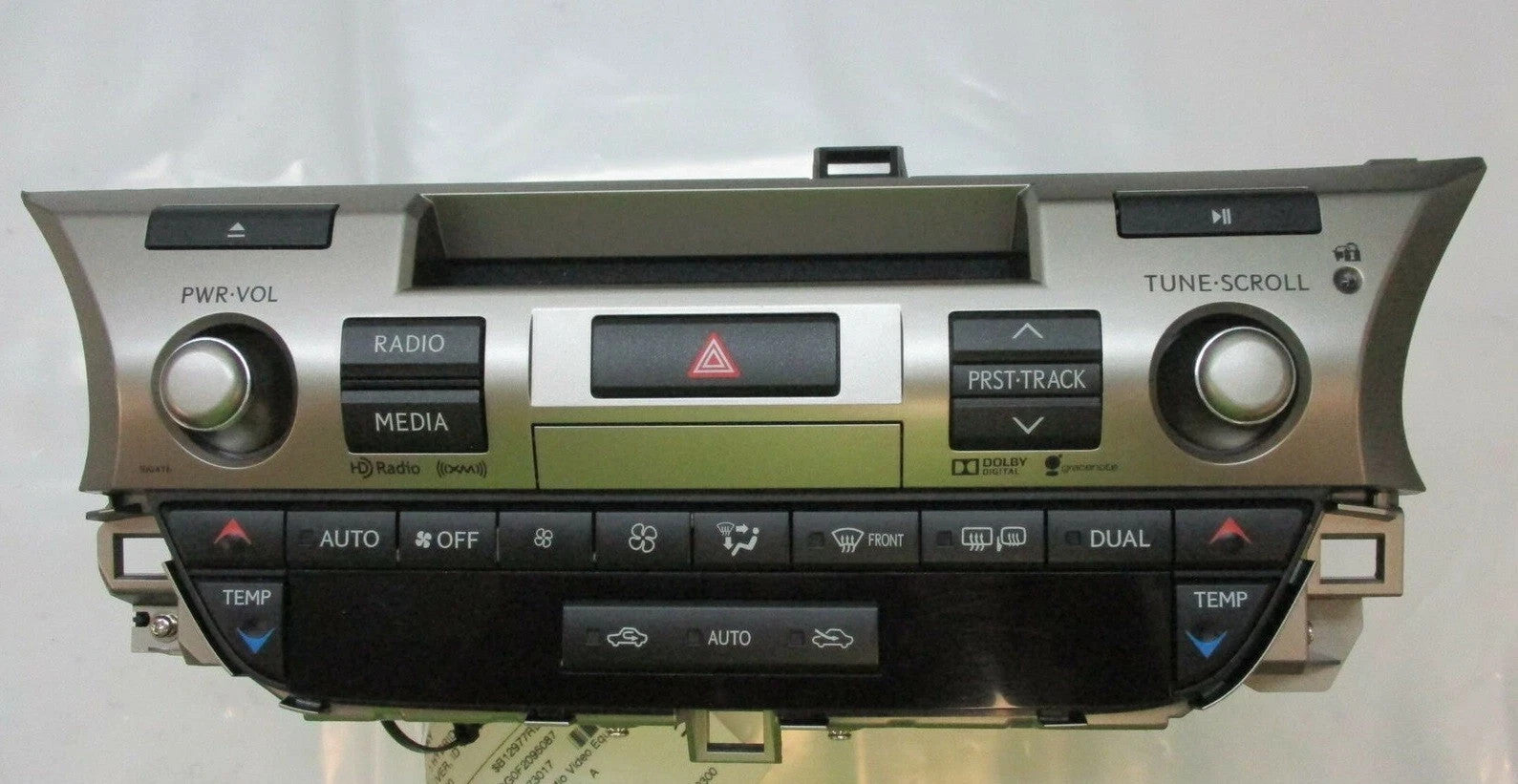

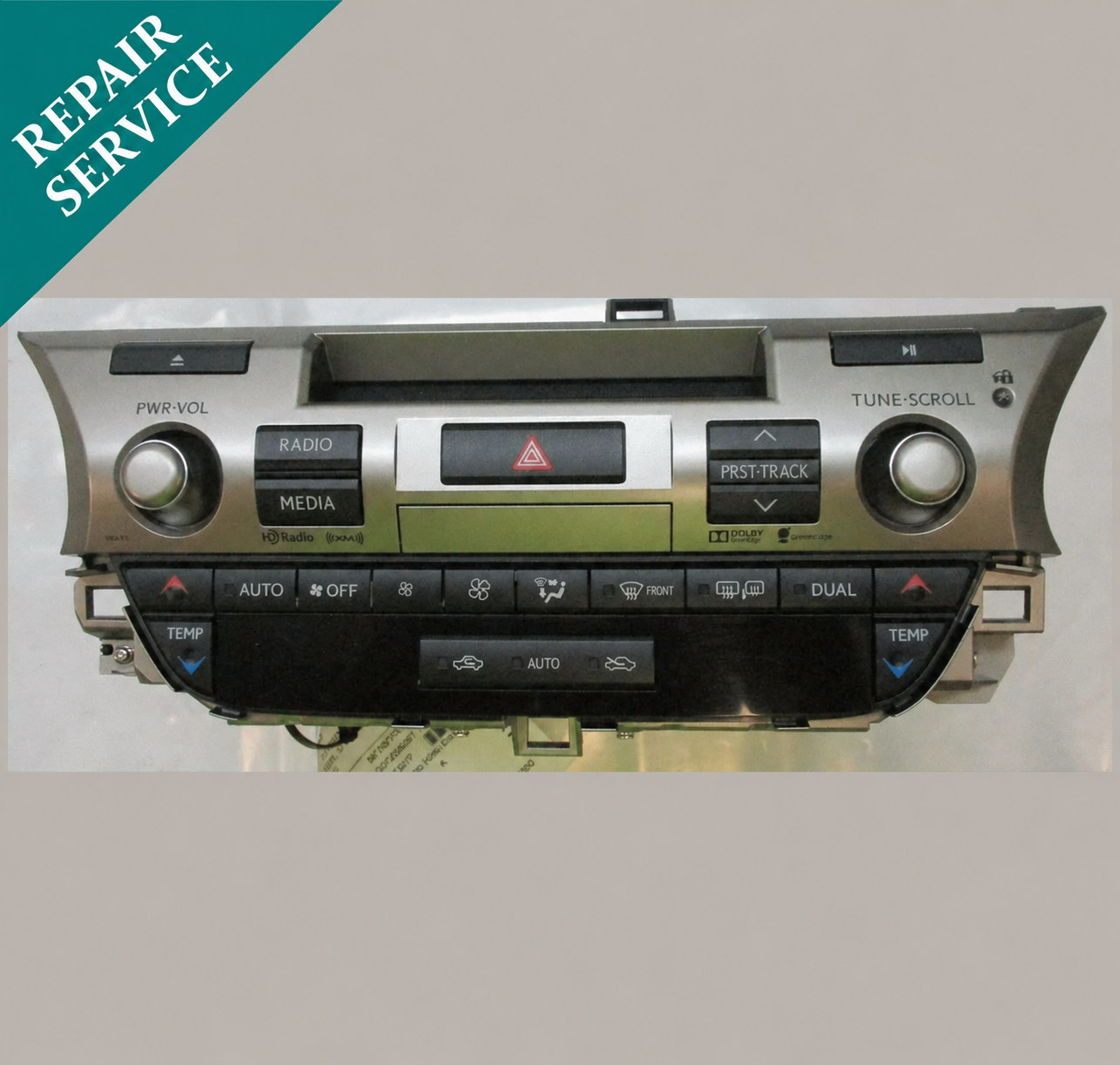

15-16 Lexus ES300H ES350 OEM Navigation Radio GPS Software Board REPAIR SERVICE

Brand: Lexus

Interchange Part Numbers: 86310-33620, 86130-33C80, 86130-33620
Manufacturer Part Numbers: 86310-33620, 86130-33C80, 86130-33620
Country/Region of Manufacture: TRUE
Universal Fitment: No
Vintage Part: No
Performance Part: No

Service Information

Starting September 12, 2025, all units requiring repair must be shipped directly to our service center.

After purchasing the repair service, we will provide the shipping address. Please do not attempt any repairs on your own, as this may lead to further damage. Return shipping is included in the service fee.

The total service cost of $702 covers all parts, labor, and return shipping.

Standard turnaround time is approximately 2–3 business days from the date the unit arrives at our facility. Customers located in the Sacramento area may qualify for same-day service.

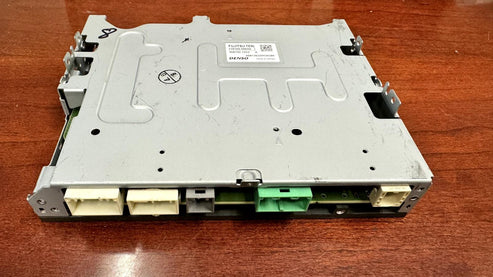

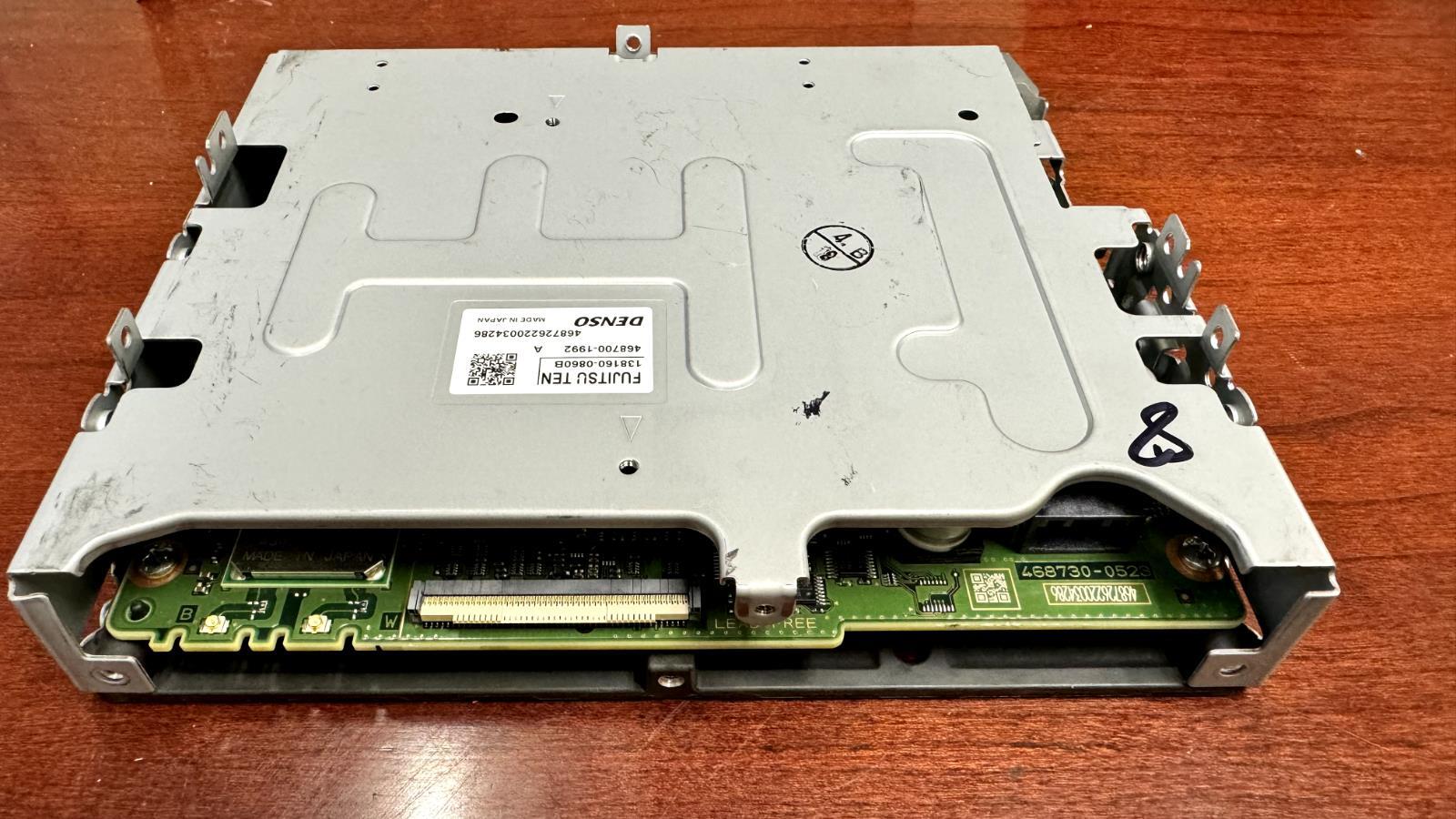

The last two images show the exact component that must be sent in for repair.

Common Issues Covered

• Backup camera functions but screen remains black
• Bluetooth not working
• No audio output
• Unit powers on and off intermittently

This repair board addresses all of the above issues.

Compatible / Interchangeable Part Numbers

86130-30100, 86130-30101, 86130-30102, 86130-30110, 86130-30112, 86130-30640, 86130-30641, 86130-30680, 86130-33011, 86130-33590, 86130-33591, 86130-30B10, 86130-30S41, 86130-48B10, 86804-30040, 86804-30160, 86860-33040, 86804-33090, 86804-33860, 86804-33870, 86804-33880, 86804-33890, 86804-33C70, 86804-33C80, 86804-33C90, 86804-33D00, 86804-48J90, 86804-30L30, 86130-33600, 86130-33012, 86130-30F80, 86130-30600, 8613030F80, 86130-33C80, 86130-33450

Please ensure compatibility by visually matching the rear connectors of your board. If the connectors match, it is likely compatible with your unit.
